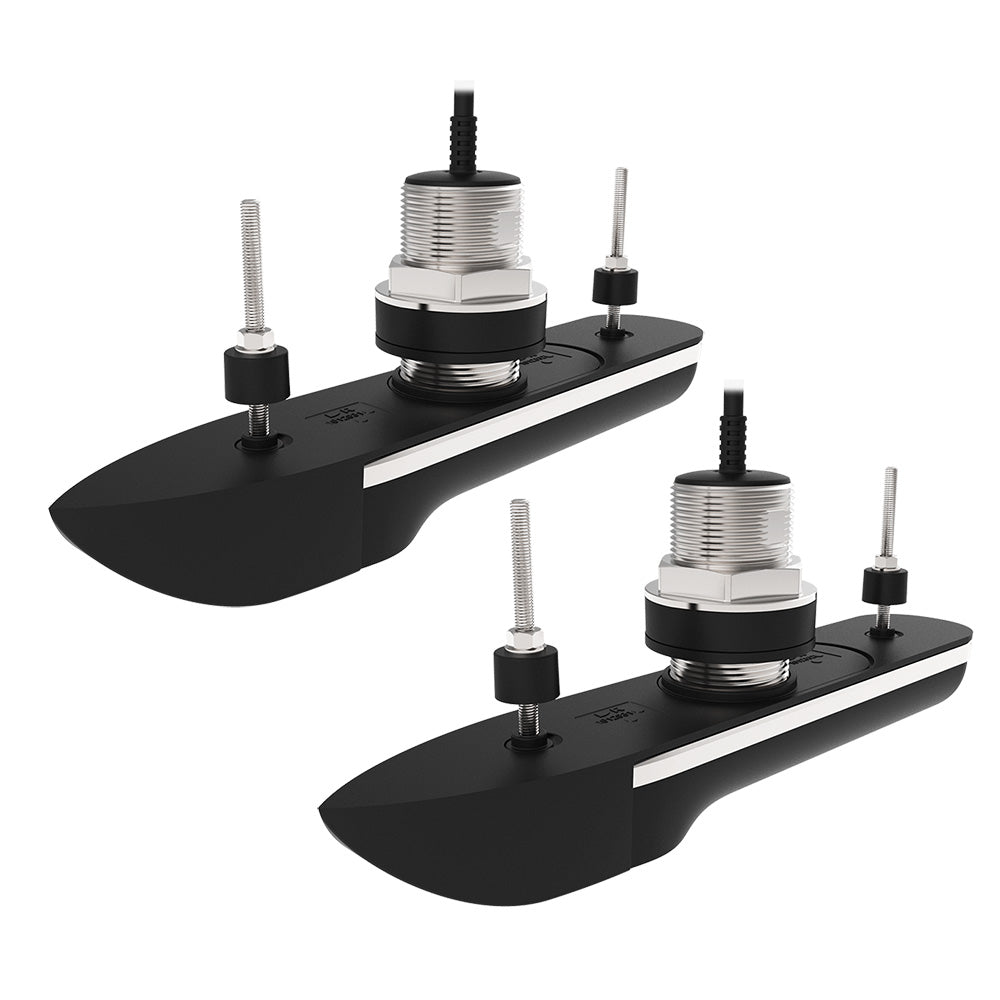

Raymarine RVM-412 Stainless Steel Thru-Hull Pair, 12 Degree Deadrise 10M Cable [T70543]
SKU RAY-T70543
About this part
RVM-412 Stainless Steel Thru-Hull Pair, 12 Degree Deadrise & 10M Cable
The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RVM-412 pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.
The RVM-412 is a port and starboard transducer pair designed for boats with 5° to 15° of deadrise. Each transducer element is tilted at 12° to compensate for the hull deadrise.
*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module
Features:
- 600-Watt traditional CHIRP
- High-performance Down and SideVision ceramics
- High-speed housing with isolation plate
- 10M Cable
- RVM-412 port and starboard pair accommodates hulls with a deadrise between 5° and 15°
