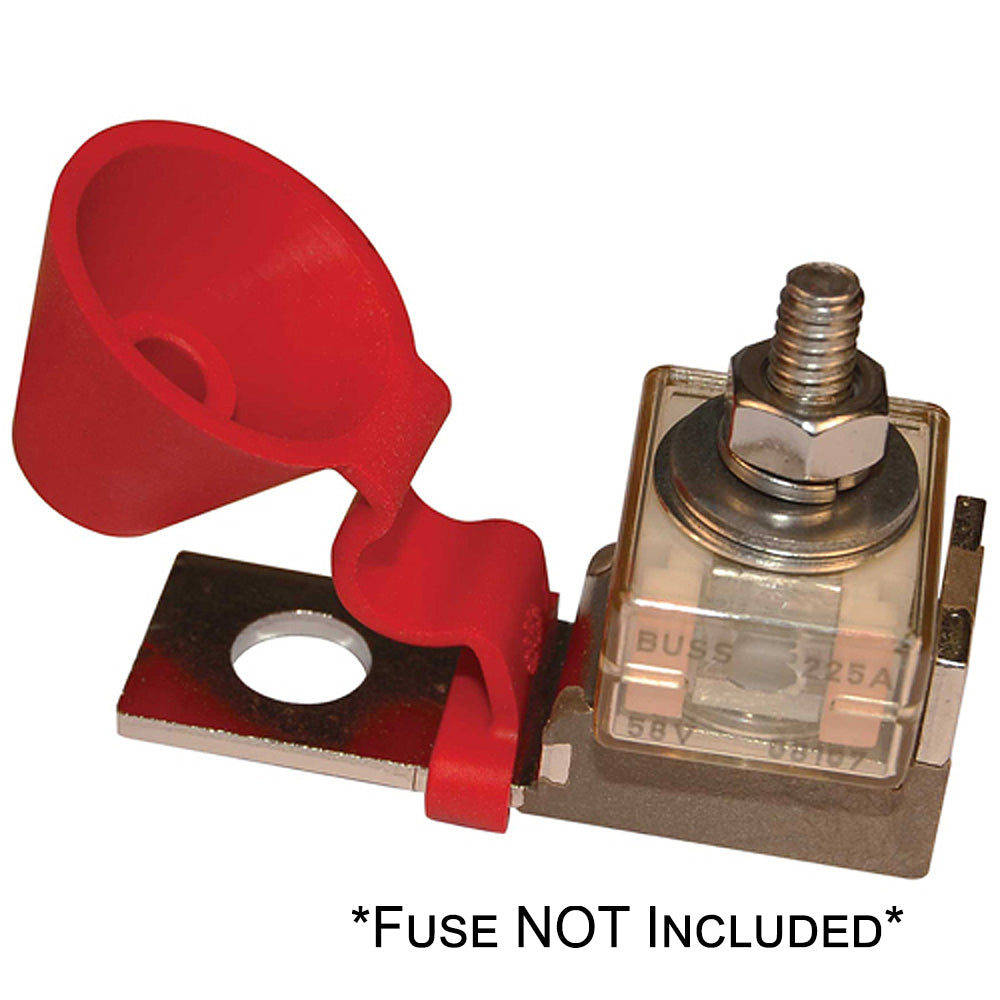

Blue Sea 5191 Terminal Fuse Block 30-300AMP [5191]

Terminal Fuse Black

  • New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
  • Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Weatherproof-suitable for small open-cockpit boats and other harsh environments
  • Insulating cap prevents accidental shorts
  • Use 5/16" or 3/8" ring terminal

Specifications

  • Ignition Protected: No
  • Maximum Amperage: 300a
  • Maximum Voltage: 58v DC
  • Terminal Stud: M8 (5/16")
  • Maximum Torque: 75 in-lb

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: Terminal
  • Type: Fuse Blocks
  • Box Dimensions: 1"H x 4"W x 6"L WT: 0.5 lbs
  • UPC: 632085051914
