Faria Euro Black 2" Tank Level Gauge - Potable Water [12830]

Euro Black 2" Tank Level Gauge - Potable Water

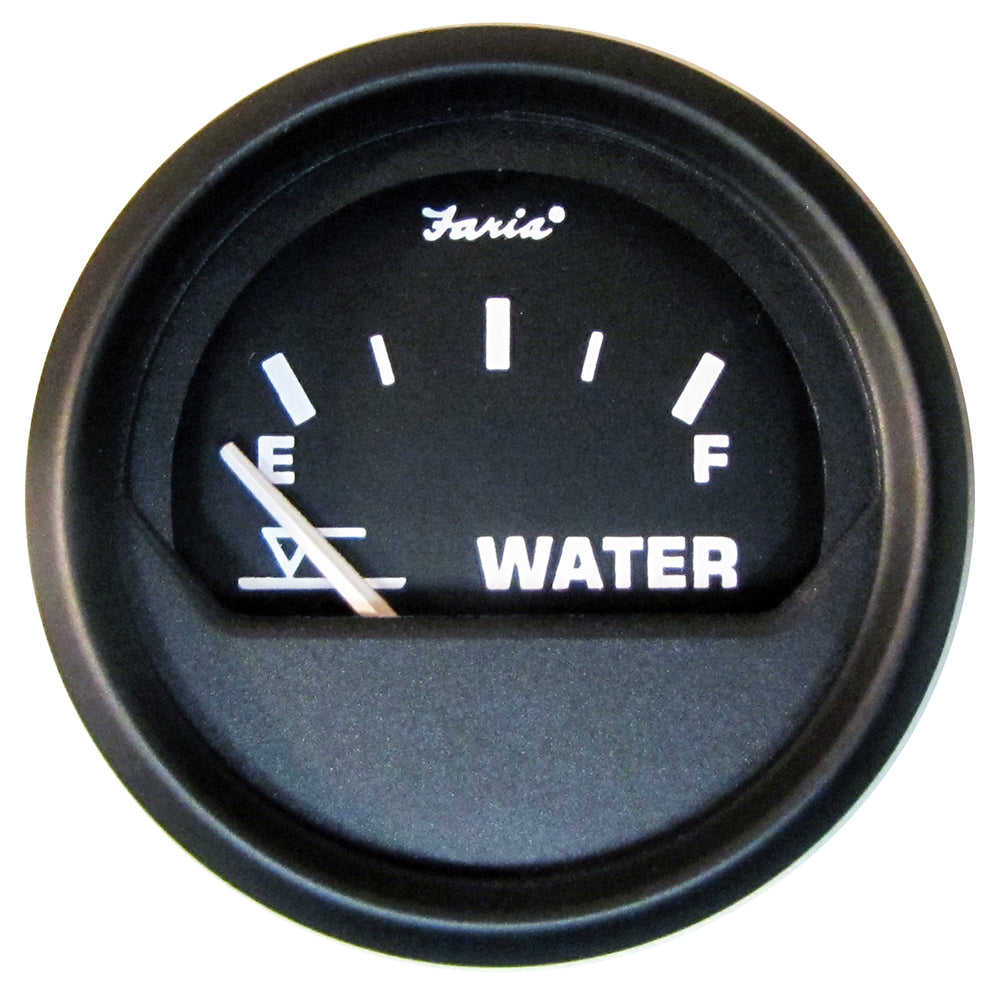

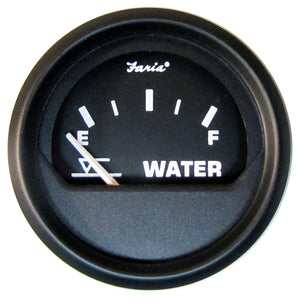

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level.

2" - Hole size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• 12 VDC negative ground
• Perimeter-lighted Black dial
• Can be adapted for 24 VDC systems

Factory P/N GP9324

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Gauge Type: Water Level
• Gauge Size: 2"
• Series: Euro Black
• Box Set: No
• Box Dimensions: 4"H x 4"W x 5"L WT: 3.3 lbs
• UPC: 759266128309
