Conversion Kit

Convert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks.

• Also converts most toilets with 4 bolt screw pattern on a 3-3/4" diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand

• Push button flushing for ease and simplicity of operation

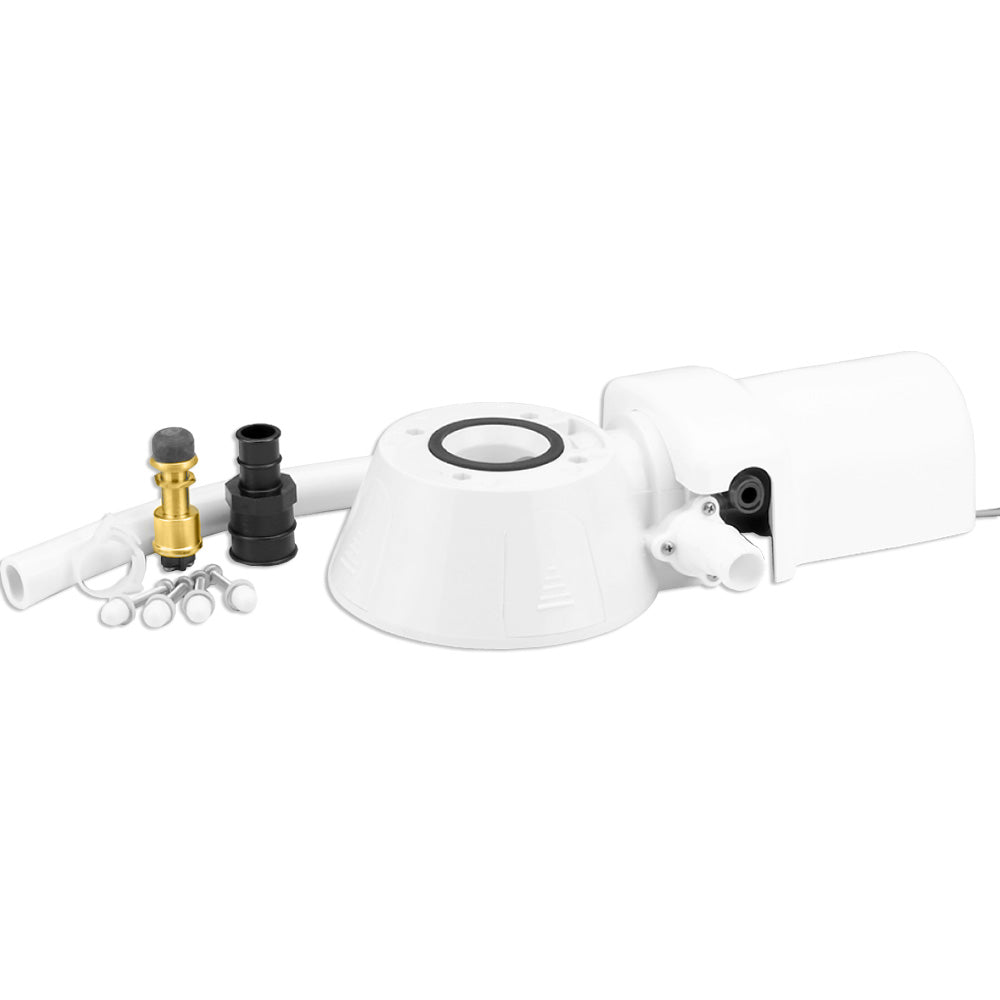

• Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening

• Flushing pump self-priming up to 4ft vertical lift

• May be installed 3ft below the waterline

• For installations fitted with vented loops use a solenoid valve on inlet hose

• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)

Fitting:Connections for 5/8" - 3/4" ID inlet hose, 1" - 1-1/2" ID outlet Hose
Size: 13-1/4" long x 8-1/4" wide x 3-1/4" high

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Inlet Size: 5/8" or 3/4"
• Outlet Size: 1" or 1-1/2"
• Suction Lift (ft.): 4'
• Volts: 12v
• Type: Misc
• Box Dimensions: 4"H x 9"W x 15"L WT: 8 lbs
• UPC: 671880032414

Owner's Manual (pdf)
