Lumishore ECLIPSE CL30 Courtesy Light - Blue [010-04468-00]
Lumishore

Lumishore ECLIPSE CL30 Courtesy Light - Blue [010-04468-00]

SKU LUM-010-04468-00

$69.99
Details

About this part

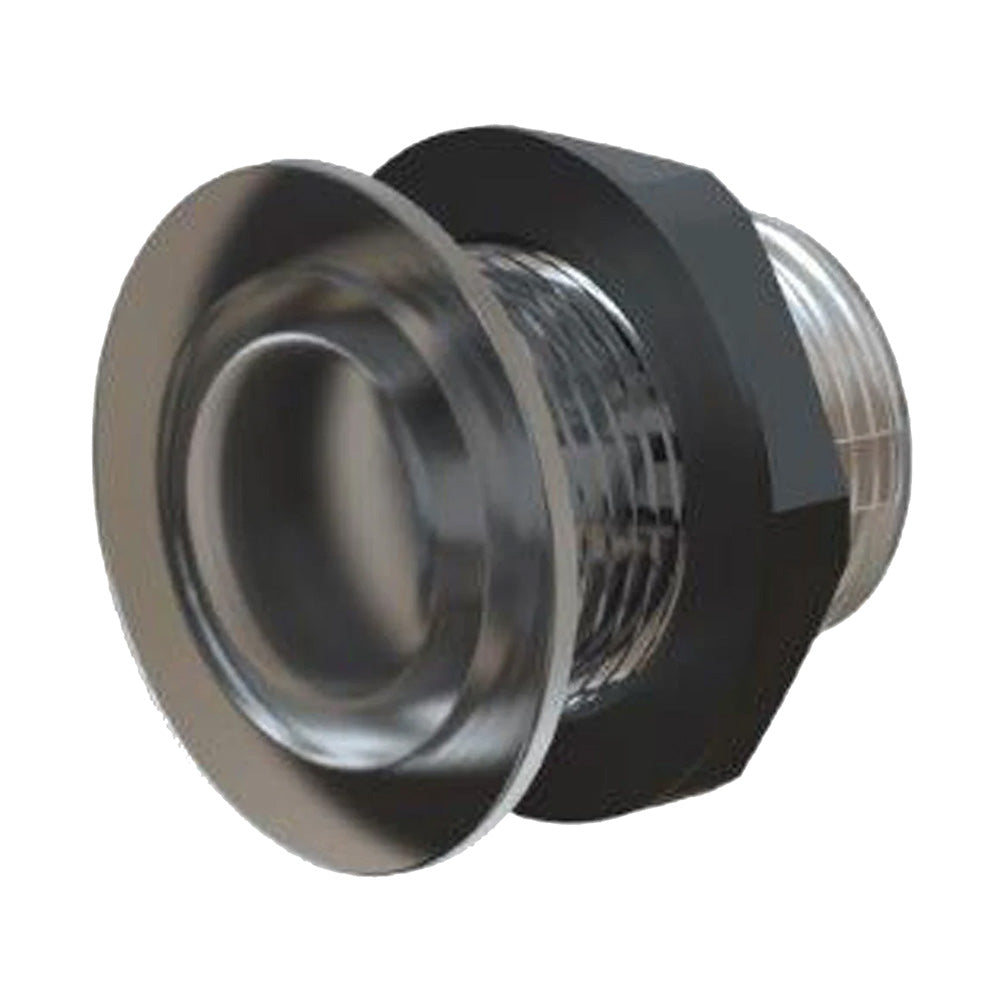

ECLIPSE CL30 Courtesy Light - Blue

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations, and other design elements of a boat.

Constructed of a durable, clear acrylic body, completely water sealed and IP67 rated.

Available in single color blue and two other color options.

Measuring 33mm (1.3”) in diameter, ECLIPSE Courtesy Lights are small, discreet, and easy to install with a 2-wire hookup, flush mountable, and fit almost anywhere onboard.

Features:

  • ECLIPSE Collection
  • Single Color
  • 3 Year Warranty

Specifications:

  • LED Type: 3 x 0.5W Blue LEDs
  • Customer Control Options: On/Off Switch or ECLIPSE Command Center
  • Electrical Installation: Simple 2-Wire Installation
  • Supply Voltage Range: 12V DC Only (10 - 15V DC)
  • Max Current Draw (12V DC): 0.1A
  • Ingress Protection: IP67
  • Front Diamater (Bezel): 33mm (1.3")
  • Depth: 30.0mm (1.180”)
  • Hole Diameter for fitting: 25.4mm (1.0")
  • Mechanical Installation: Panel Mount

Quick Guide (pdf)
