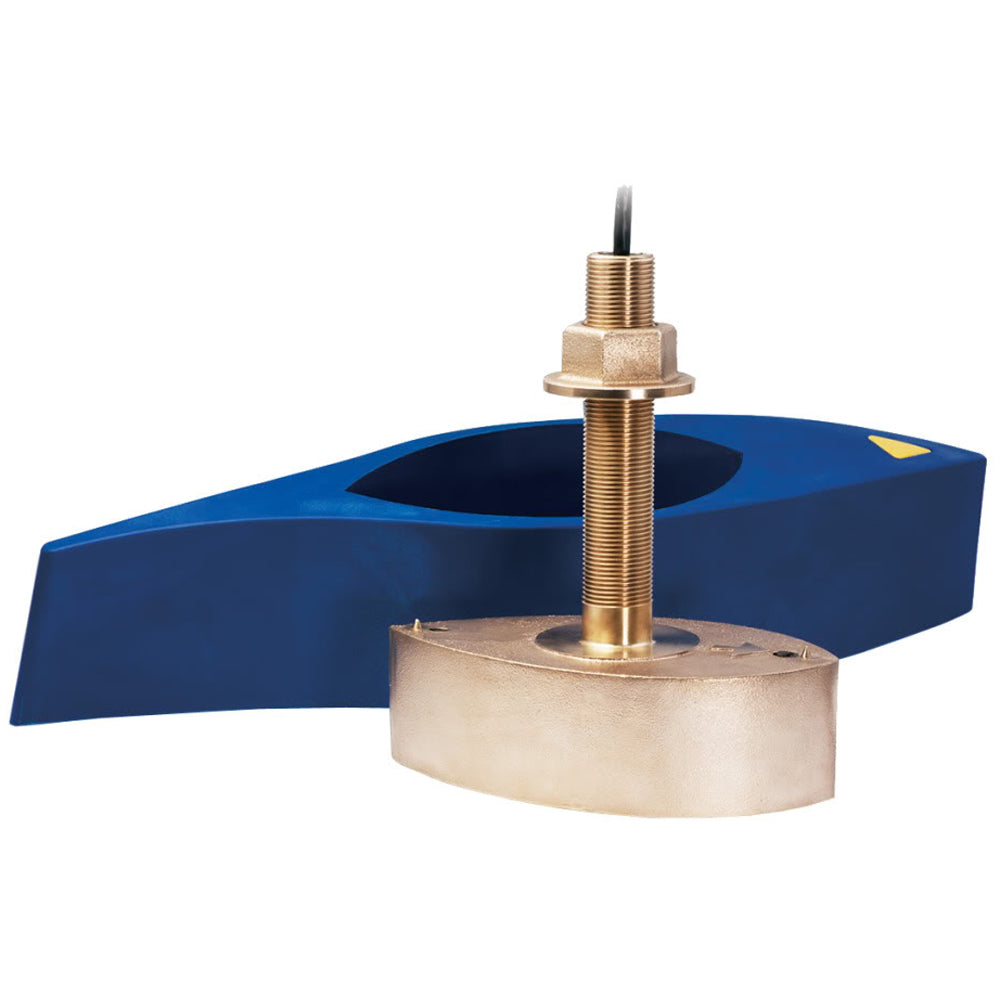

Navico xSonic B275LH-W Bronze TH Transducer - 9 Pin [000-13771-001]

xSonic B275LH-W Wide Beam CHIRP, 1 kW, 9 Pin Connector

Get more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.

A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features

• Depth & Temperature
• 42-65 kHz Low Frequency
• 150-250 kHz High Frequency
• Bronze
• 1 kW
• 9 Pin Connector
• Fairing Block Included
• Wide 25° Beam

Specifications:

• Speed Included: No
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Temperature: Yes
• Cable Length (Feet): 33'
• Chirp: Low/High Wide
• Box Dimensions: 7"H x 18"W x 26"L WT: 23.7 lbs
• UPC: 9420024161821
