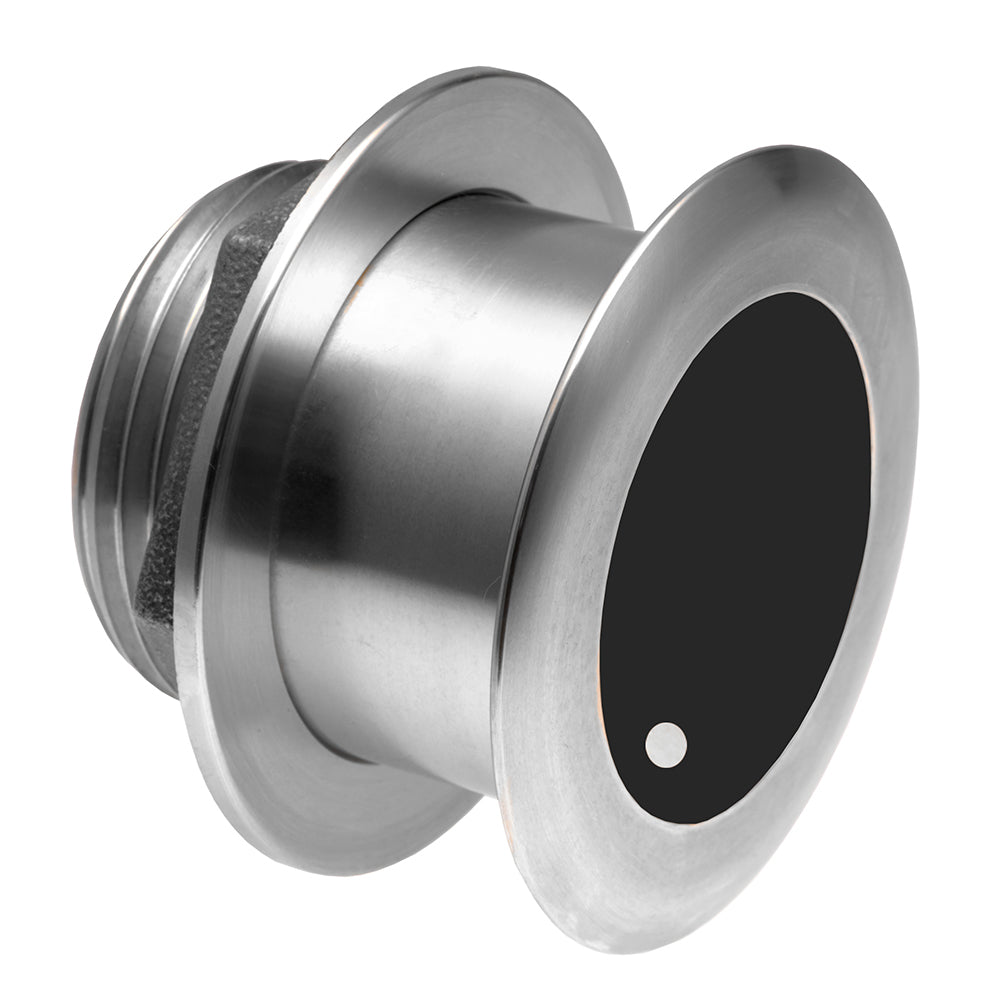

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector

SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.

*This Transducer is designed for smaller boats up to 36 feet (11 m).

Features

• Frequencies: 130-210 kHz @ 25° constant beamwidth
• 16° - 25° Deadrise
• 300m+ Usable Depth
• 6m+ or large Boat size with Steel or Aluminum hulls
• Depth & Temperature
• CHIRP Technology
• High-Performance
• Stainless Steel
• Exclusive Transducer ID
• 9-Pin Connector, 10M Cable

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High Wide
• Cable Length (Feet): 33'
• Pins: 9
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
• UPC: 9420024161937
