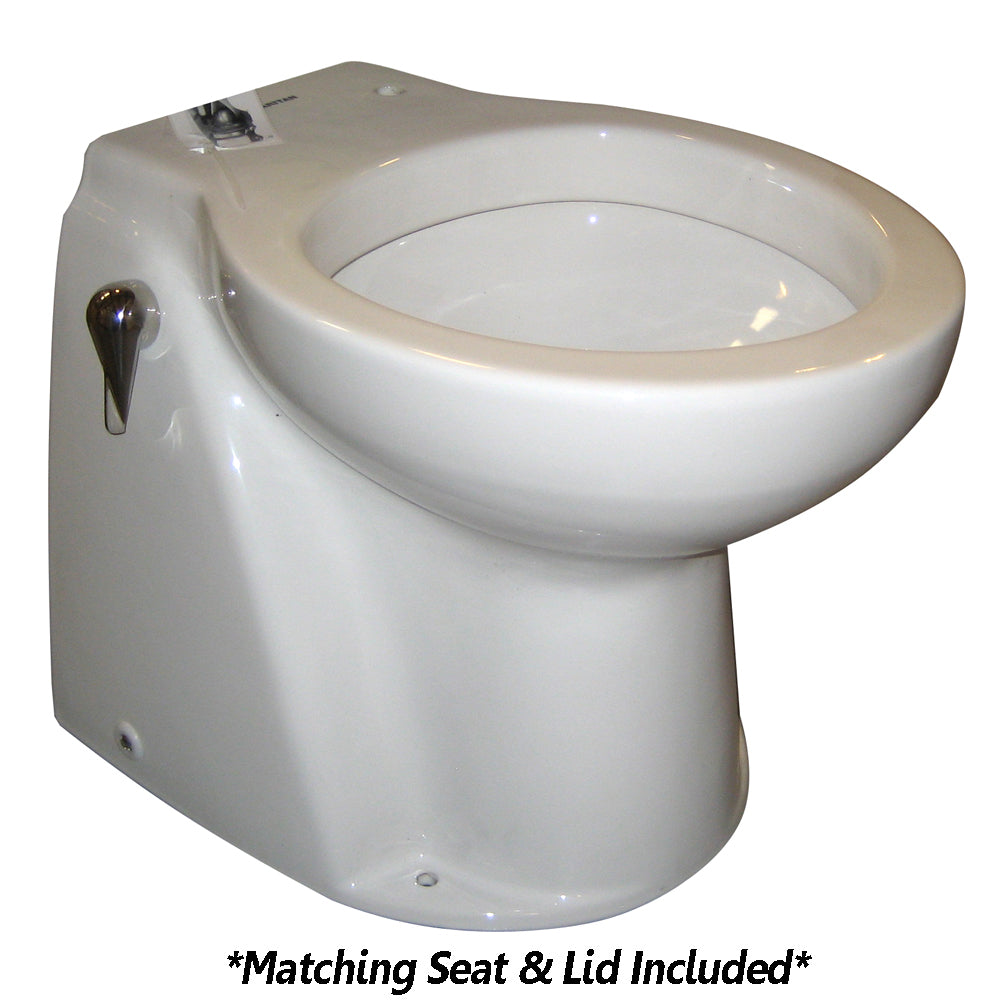

Raritan Atlantes Freedom w/Vortex-Vac - Household Style - White - Remote Intake Pump - Momentary Handle - 12v [AVHWR01202]

Atlantes Freedom™

The Atlantes was one of the first toilets to incorporate the idea of having all components mounted within the bowl. The idea behind the Atlantes was to offer a metal handle on the side of the bowl to make the marine bathroom less intimidating for those not used to being on a boat. We offer the metal handle with many options but most people understand they simply need to push it to have the toilet flush. The head area of any boat can be very daunting for those not familiar with how the toilets work. By offering a handle on the side of the bowl your guests will feel more at ease. The other, and probably equally important, feature of the original Atlantes was to appeal to the women on the boat. The Atlantes is far more aesthetically appealing than tons of nooks and crannies which ultimately means the toilet looks much cleaner. Users in any bathroom can appreciate the smooth minimal lines to make cleaning a quick and easy chore.

Today the Atlantes now incorporates the same Vortex-Vac technology as the Marine Elegance but in a bowl that offers a more substantial footprint as well as the just like home handle option. The advantage of the Vortex-Vac technology is that the waste is efficiently moved from the bowl by a vacuum action created by the pump rather than depending on remote vacuum generation. While a vacuum toilet may use slightly less water, the advantage of Vortex-Vac is that one does not need to depend on the vacuum generator pump that tends to run for about 45 seconds to generate the vacuum. The timed flush cycle brings water in then runs a discharge then water again and discharge for the least amount of water usage and effectiveness of moving waste out of the toilet.

Standard Features:

  • One piece china bowl
  • Anti-clog "power shred" discharge system
  • Household style
  • Stainless momentary handle
  • Remote intake pump
  • Powerful bronze cutting blades designed to "shred" most objects

Benefits:

  • Vortex-Vac technology
  • Simple flexible installation
  • Low power consumption
  • Three modes of operation - Fill, dry flush or fill and flush
  • Freedom from clogged toilets and marine size bowls, excellent performance even in commercial applications
  • Easy to clean and maintain
  • Diaphragm intake pump can be run dry
  • Microprocessor control and solid state circuit breaker
  • No fuses or relays inside the unit
  • Easily installs above or below waterline on any vessel

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: White
  • Gallons Per Minute: 3 GPM
  • Inlet Size: 3/4"
  • Operation Method: Electric
  • Outlet Size: 1-1/2"
  • Rinse Water: RAW
  • Suction Lift (ft.): 4'
  • Volts: 12v
  • Type: Toilet
  • Size: Household Size
  • Box Dimensions: 19"H x 19"W x 26"L WT: 65 lbs
  • UPC: 085462029240

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
