Samlex Waterproof Battery Guard - 200 Amps [BGW-200]
Samlex America

Samlex Waterproof Battery Guard - 200 Amps [BGW-200]

SKU SAM-BGW-200

$309.60 $387.00 Sale
Details

About this part

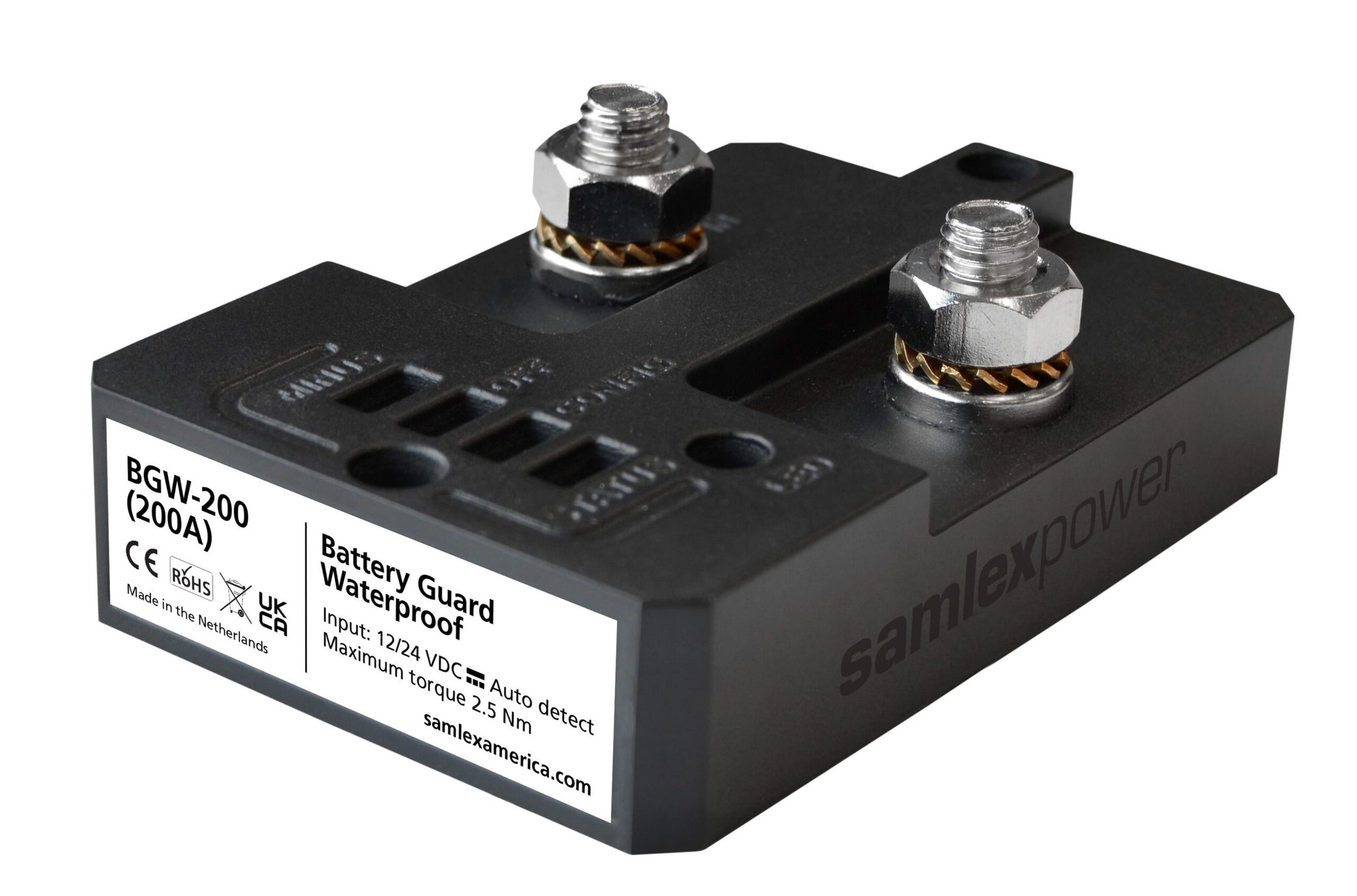

Waterproof Battery Guard - 200 Amps

The complete universal programmable Battery Guard (BGW) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BGW 200 battery guard has "Automatic Board System Detection"; the BGW automatically detects the battery voltage (12 or 24 V). The BGW 200 battery guard can carry a 200 A continuous load and a 1000 A peak current at 25 degrees. You can choose between 10 on/off threshold voltage programs for both 12V and 24V battery systems, which can be easily programmed.

Features:

  • Can be set to connect/disconnect at several different voltages
  • Batteries last longer
  • Prevents damage to connected components
  • Protects against excessive voltage caused by faulty alternators or chargers
  • E-mark, pending
  • 2-year warranty

Specifications:

  • Input Voltage: Automatic detection 12/24 V
  • Output Voltage: 9,5-27,6 VDC
  • Dimensions: 39 x 76 x 111 mm
  • Output: 200 Amps
  • Weight: 0,295 Kg

*No battery included
