Wichard Key Pin Shackle - Diameter 8mm - 5/16" [1434W]
Wichard Key Pin Shackle - Diameter 8mm - 5/16"
Wichard Marine

Wichard Key Pin Shackle - Diameter 8mm - 5/16" [1434W]

SKU WIC-1434W

$75.03 $88.27 Sale
Details

About this part

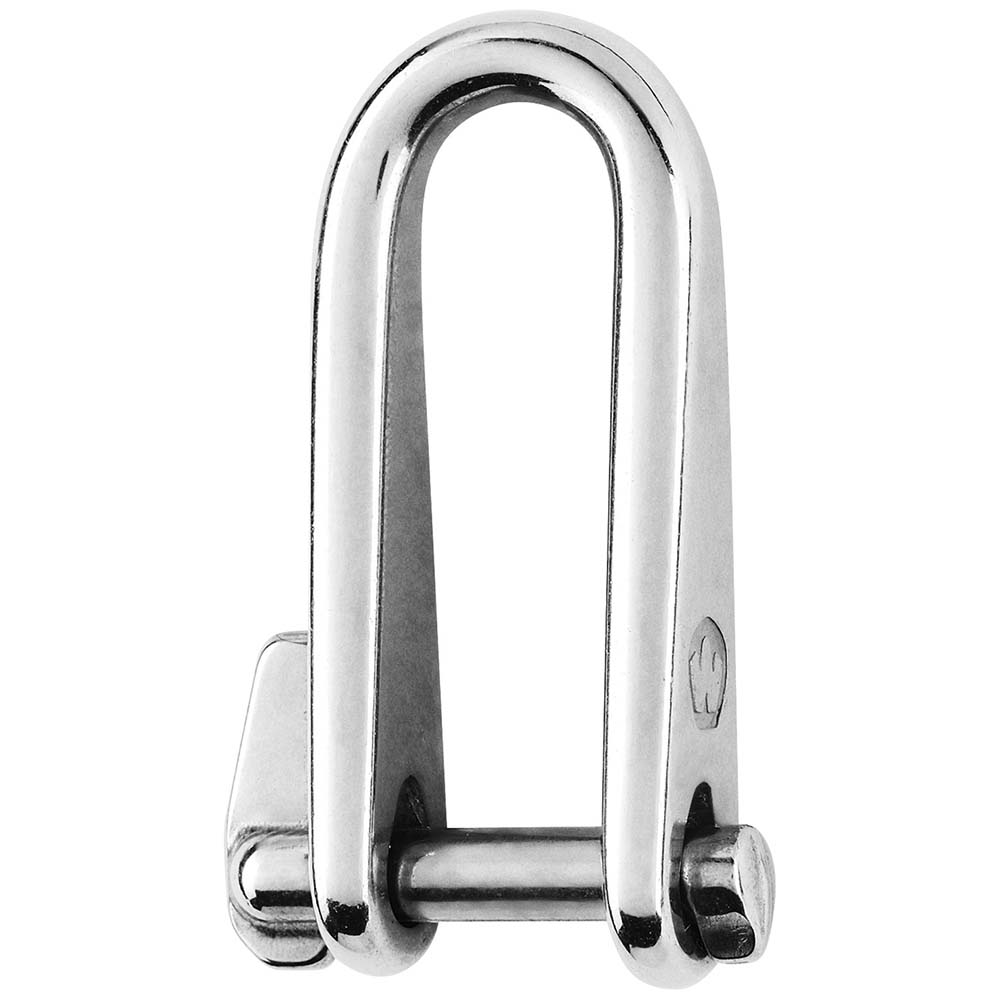

Key Pin Shackle - Diameter 8mm - 5/16"

Features:

  • Key pin shackle forged in grade 316L stainless steel
  • Opening and closing is done simply by rotating the pin half a turn
  • No risk to lose the pin as it remains attached
  • Outstanding working and breaking loads

Applications:

  • Perfect product for halyards or applications requiring to open /close the shackle often

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1760
  • Breaking load (lb) 5070
  • Weight (lb) 0.267

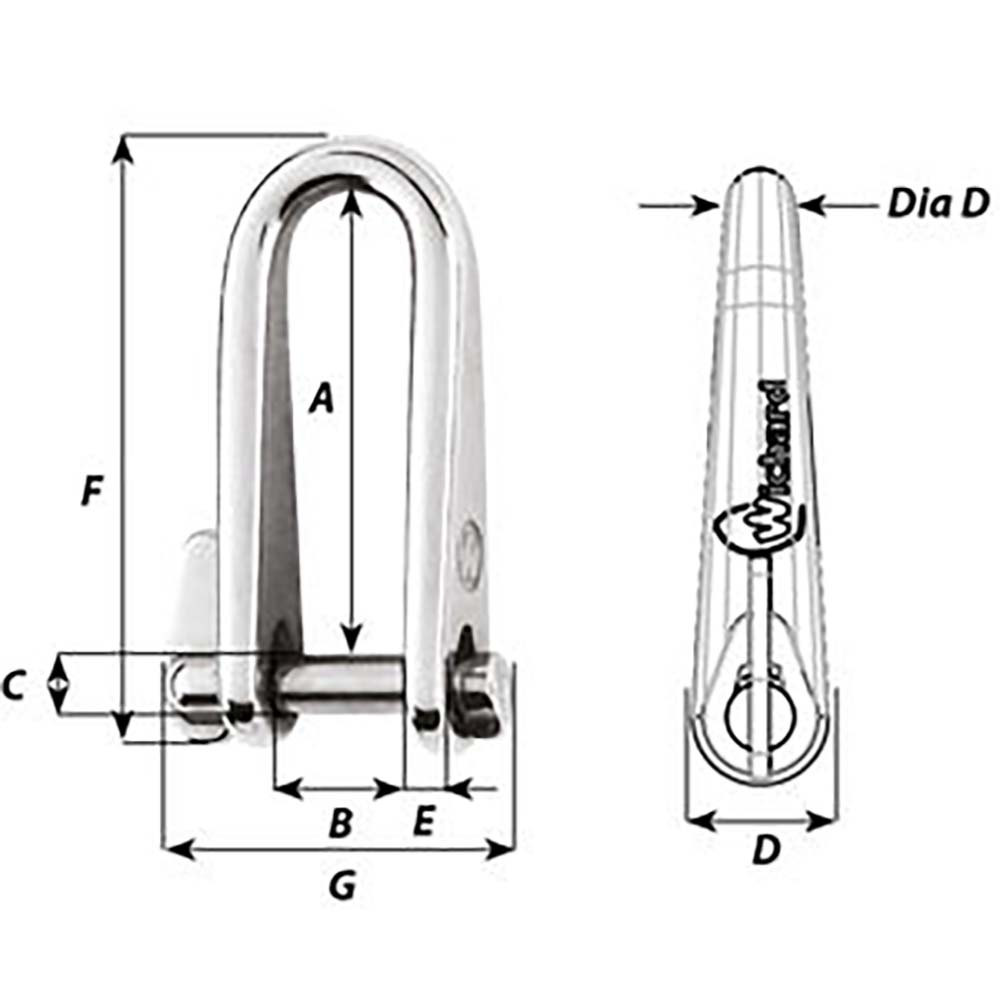

Dimensions (see 2nd image):

  • A (inch) 2-21/64"
  • B (inch) 53/64"
  • C (inch) 5/16"
  • D (inch) 43/64"
  • D diameter (inch) 5/16"
  • E (inch) 15/64"
  • F (inch) 3-7/64"
  • G (inch) 1-59/64"
