Wichard Self-Locking D Shackle - Diameter 5mm - 3/16" [1202W]
Wichard Self-Locking D Shackle - Diameter 5mm - 3/16"
Wichard Marine

Wichard Self-Locking D Shackle - Diameter 5mm - 3/16" [1202W]

SKU WIC-1202W

$16.70 $19.65 Sale
Details

About this part

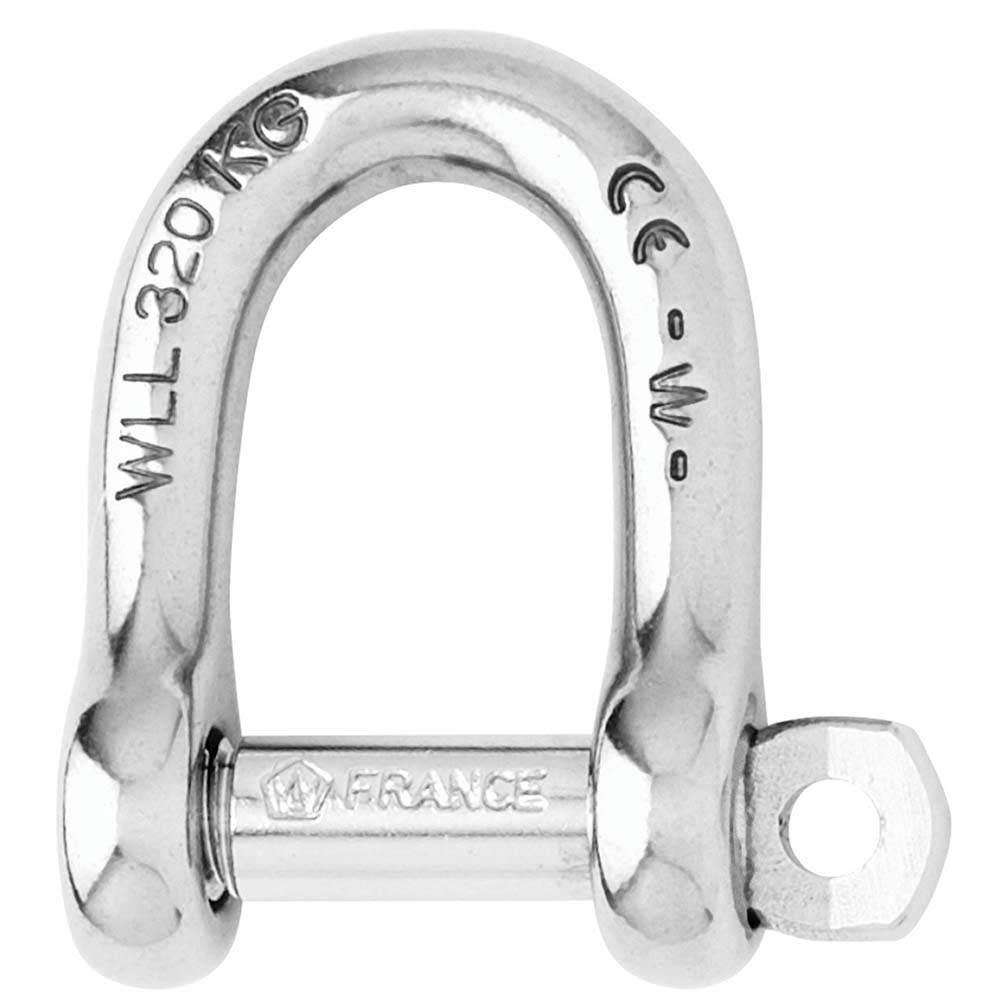

Self-Locking D Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 300
  • Breaking load (lb) 1540
  • Weight (lb) 0.015

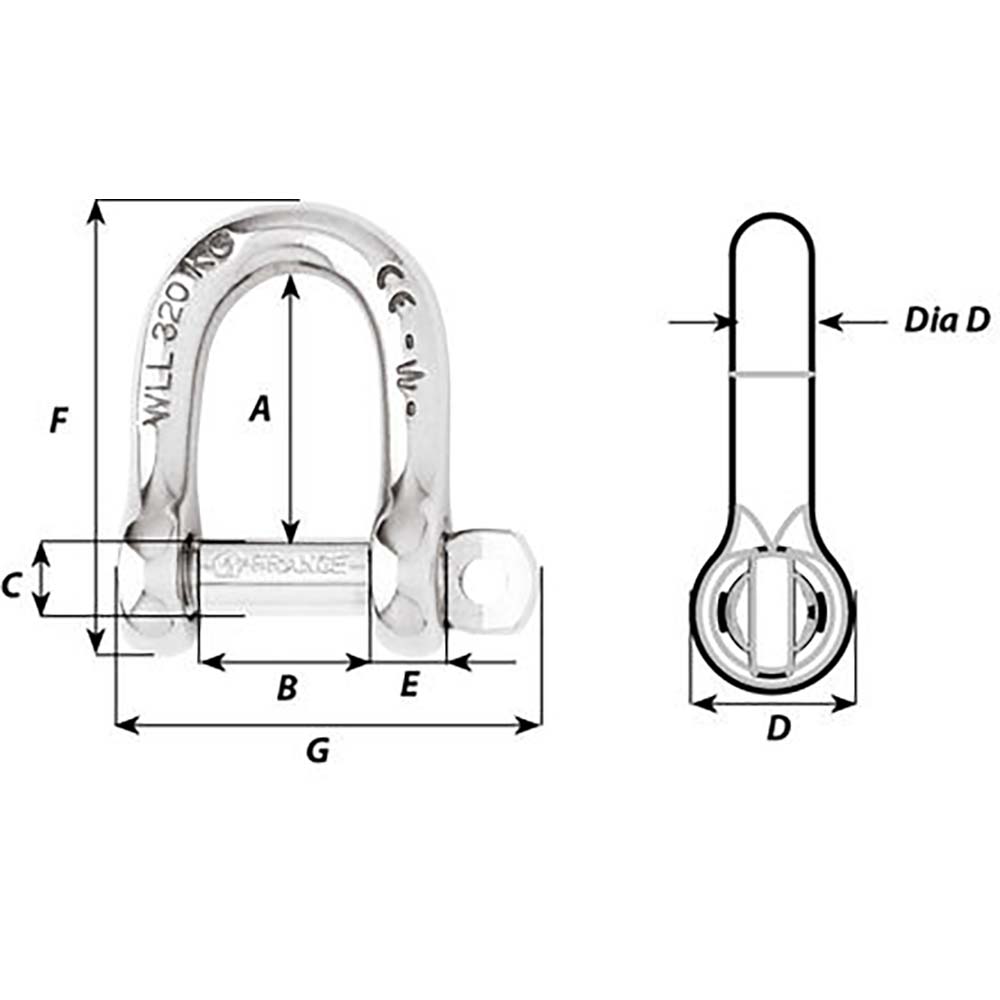

Dimensions (see 2nd image):

  • A (inch) 33/64"
  • B (inch) 5/16"
  • C (inch) 5/32"
  • D (inch) 5/16"
  • D diameter (inch) 5/32"
  • E (inch) 1/8"
  • F (inch) 29/32"
  • G (inch) 25/32"
