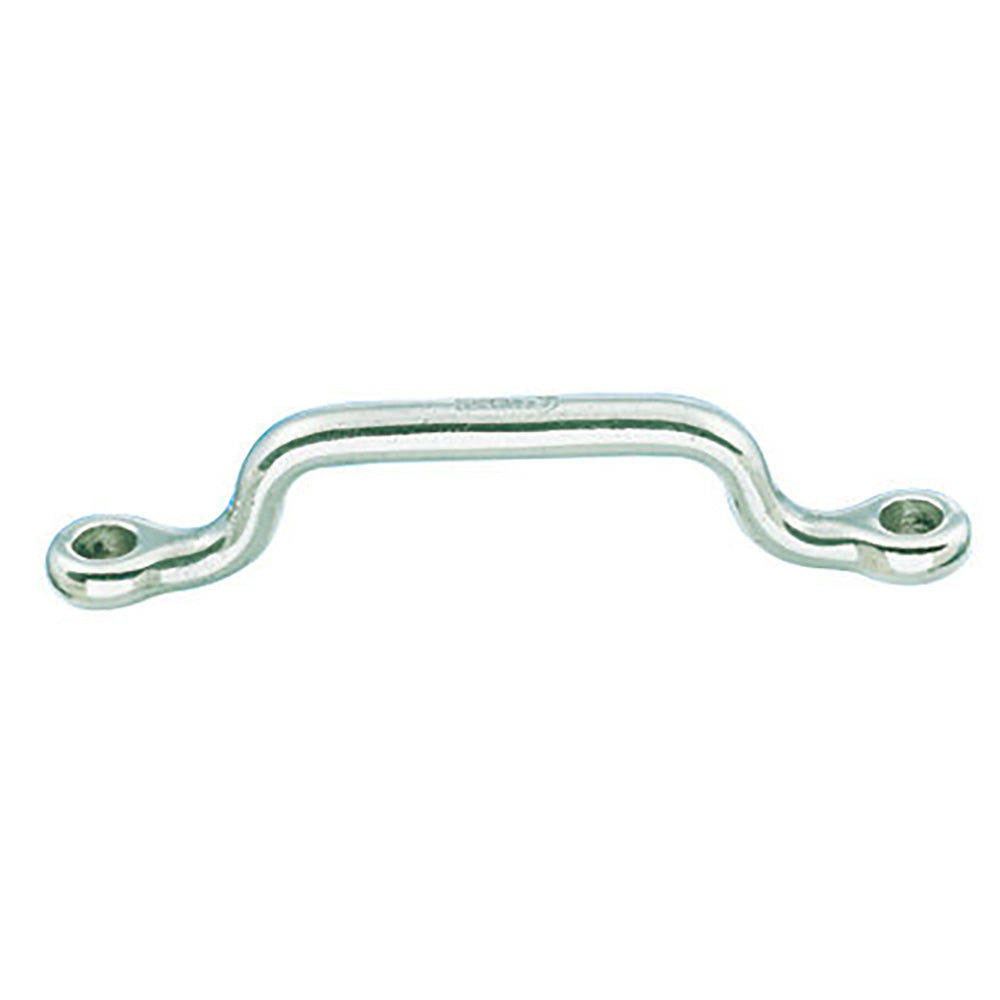

Wichard Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64" [9222W]
Wichard Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"
Wichard Marine

Wichard Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64" [9222W]

SKU WIC-9222W

$23.83 $28.04 Sale
Details

About this part

Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"

Features:

  • Drop-forged webbing eye straps with high-quality stainless steel (316L)
  • Outstanding strength
  • Specific use for webbing

Applications:

  • The perfect solution to attach webbing

Specifications:

  • Materials: 316L stainless steel grade
  • Weight: (lb) 0.04 / (g) 18

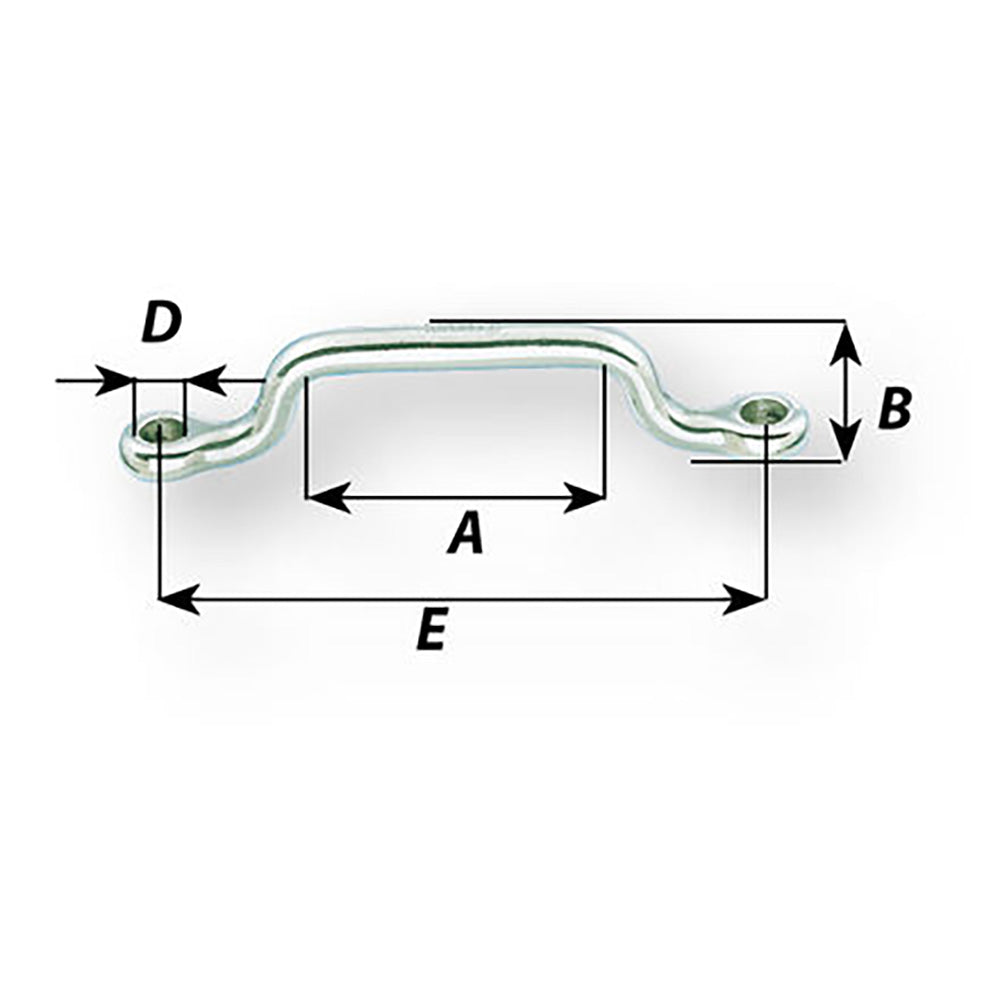

Dimensions:

  • A: (inch) 1 31/32" / (mm) 50
  • B: (inch) 15/32" / (mm) 12
  • D diameter: (inch) 13/64" / (mm) 5
  • E: (inch) 3 25/64" / (mm) 86

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
